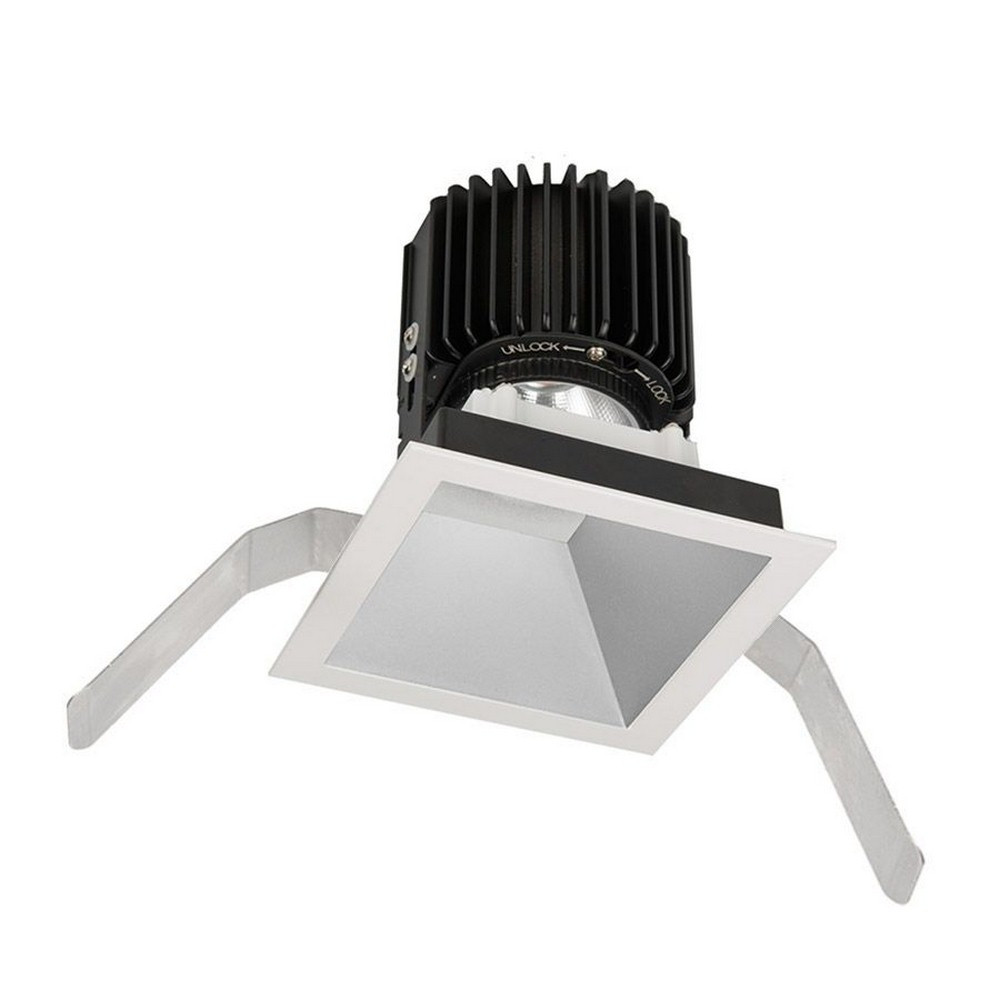

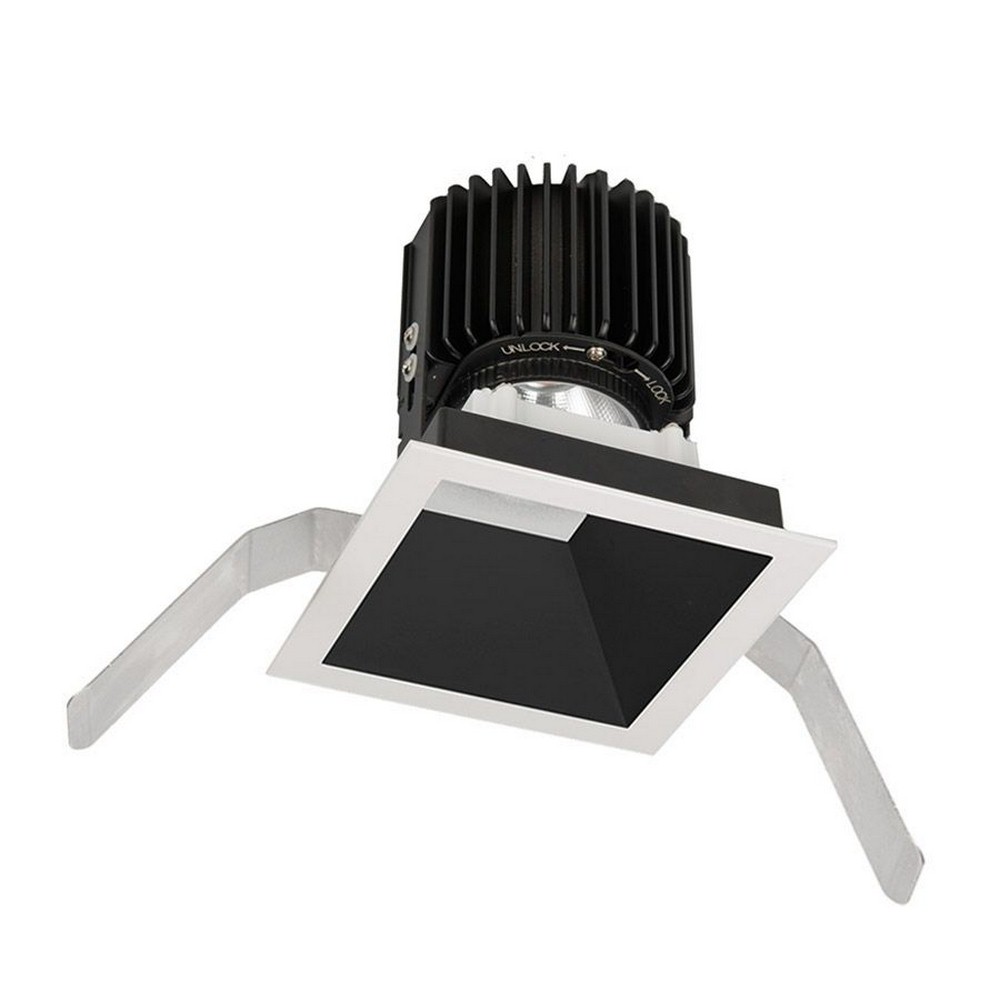

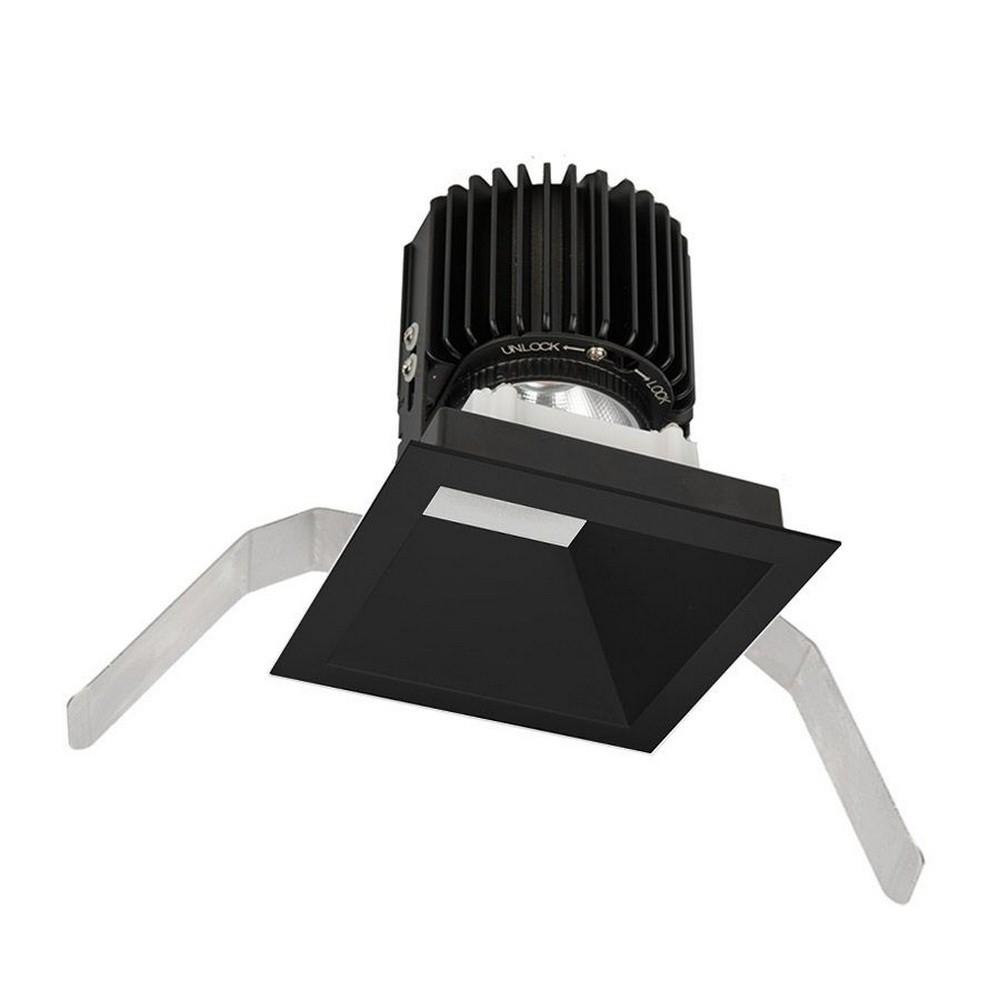

Volta 4.5 Inch Square Recessed Downlight Trim by WAC - Energy-Efficient LED Architectural Lighting

Upgrade your home’s lighting with the sleek and high-performance Volta 4.5 Inch Square Recessed Downlight Trim. Designed to combine modern style with exceptional functionality, this LED architectural fixture offers versatile installation options and outstanding illumination for any space.

Why You'll Love It

• Features a durable LED Light Engine with a replaceable high-powered LED module for long-lasting performance
• Available in various trim styles including square, round, adjustable, wall wash, shallow Regressed, and a sleek flangeless option that can be spackled directly up to the aperture
• Offers smooth, continuous dimming to 1% with compatible electronic low voltage or 0-10V dimmers, allowing perfect light control
• Energy Star certified and CEC Title 24 compliant, ensuring energy efficiency and regulatory adherence
• Includes options for New Construction IC Rated Airtight or Remodel Non-IC Airtight installation, with Chicago Plenum Safety ratings and emergency backup battery options

Style & Design

The Volta downlight features a clean, minimalist square trim crafted from high-quality materials with a sleek finish that complements contemporary and modern interiors. Its geometric shape and refined detailing make it an ideal choice for accent lighting, task illumination, or ambient glow. The option for a flangeless design allows for a seamless, integrated look with your ceiling, while the variety of trims enables customization to match your decor style.

Function & Fit

Designed for versatile home use, the Volta 4.5 Inch Downlight can be installed in ceilings of various types, including new construction and remodel projects. It features a 5.13-inch cutout and an aperture of 4.5 inches, fitting snugly into standard ceiling openings. The fixture is equipped with tool-less, in-field adjustable glare control and optics, providing precise beam control and reducing unwanted light spill. Its high-powered LED engine delivers 1303 lumens at a color temperature of 2700K, creating warm, inviting light perfect for living rooms, kitchens, hallways, or home offices.

Additional Resources

Need help deciding which product is right for your space? Check out our WAC Buying Guide for expert advice.

Product Specifications

• Trim Size: 5.75 inches
• Aperture Size: 4.5 inches
• Cutout Diameter: 5.13 inches
• Height: 6.39 inches
• Width: 5.75 inches
• Number of Bulbs: 1 LED module
• Color Temperature: 2700K
• Lumens: 1303
• CRI: 85
• Rated Life: 70,000 hours
• Beam Spread: Spot 15 degrees
• Assembly Required: Yes
• Included: LED Light Engine
• Material: High-quality metal with durable finish

Warranty & Certifications

• ETL & cETL Listed for safety and performance
• Wet Location Listed
• Five-year functional warranty and two-year finish warranty
• Energy Star certified and CEC Title 24 compliant (in 90CRI version)
• Chicago Plenum Safety Rated
• Optional emergency backup battery available
